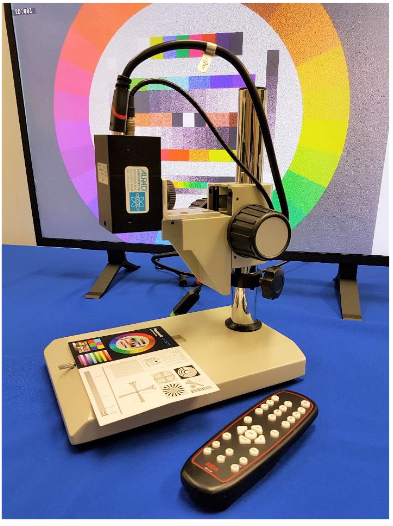

VIS-4K3X
4K UHD Video Inspection System
8.45 MP Video Camera & Lens / Stand / 28” 4K Monitor
Features & Benefits:
- 4K HDMI Output 8.45 MP Camera
- Ultra High Definition 2160p – 29.97fps
- Plugs into 4K Video Monitor (UHDMI)
- Integral 3x Macro Zoom Lens
- Auto/Manual Focus, 10cm~infinity
- IR Remote Control
- OSD Menu (mini joystick Controller)
- Adjustable Height Stand
- Optional LED Lights
- SMPTE 292M, 424M, 2081-10
- Alternative 4K Monitor Screen Sizes
Specification & Models:
- Camera Sensor: 16:9 SONY IMX274 CMOS, 1/2.5″ format (5.7×4.28mm), 3840 x 2160 x 1.6μm2 pixels
- Video Output: 4K on HDMI-A: 2160p (3840×2202), 1080p/1080i (1920×1080), 720p (1280×720)
- Resolution/Rate: 4K 2160p: 30 / 29.97 / 25 / 24 FPS
- 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 FPS
- 1080i: 60 / 59.94 / 50 FPS
- 720p: 60 / 59.94 / 50 FPS
- Output: HDMI1.4 / 4:2:2 (YCbCr) 10 bit / SMPTE 292M, 424M, 2081-10
- Electronic Iris AE: Auto Electronic Iris / Manual Shutter range 1/25 – 1/10,000 Second
- Gain: Automatic / Manual Gain Control -Sensup x2 to x12
- White Balance: Auto/ Manual / Indoor / Outdoor / AWB / ATW
- Brightness: Auto/ Manual Adjustment
- Colour: R/G/B, Monochrome and Saturation & Hue adjustments
- User Interface: Graphic On-Screen Display – via Menu Control Joystick or IR Remote Control Unit
- Camera Control: RS485
- Operating Voltage: 12VDC in (500mA) – on standard 2.1mm DC Jack Socket (on supplied I/O cable)
- Integral Lens: 3x Macro Auto-Focus/Manual Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)
- Working Distance 10cm~infinity, 55x31mm FoV at Tele and 166x93mm FoV at Wide (10cm MOD)
- Monitor 28″ LED 16:9 Full UHD 4K Monitor, 3x HDMI-A Sockets, c/w, Stand Legs.
- Supplied Accessories: UK Power Supply, I/O Cable, 1.5m HDMI Cable, IEC UK Mains Cord, Camera Control.
