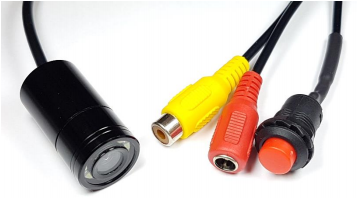

Features & Benefits:
- Image Sensor 1/3″ Colour CMOS, 786 x 576 Pixels, 520 HTVL Resolution
- Integral Illumination 8 Bright White LEDs, 90° coverage up to 7m range
- Lens Focal Length Wide-Angle 2.5mm, f1.2, 95° H.A.o.V, M9-Mount
- Lens Focus Range Manual Adjustable Focus 20mm to infinity (accessed by removing front cover)
- Sensitivity 5 LUX / 0 LUX in Total Darkness when LEDs on
- Electronic Shutter Auto Shutter: 1/50~1/100,000 Sec.
- Gain Automatic Gain Control (AGC )
- White Balance Automatic White Balance (AWB)
- S/N Ratio >45dB
- Video Output PAL CVBS, Composite 1Vp-p – via RCA/Phono Socket (Yellow)
- Camera Operating Voltage 5~24Vdc Regulated, via 2.1×5.5mm DC Jack Socket (Red)
- Camera Operating Power 75mA at 5VDC, LED’s Off / 260mA LED’s On.
- 35mA at 12VDC – LED’s Off / 100mA LED’s On.
- LED Control Red Push-Button On/Off Switch – fitted on cable end.
- Case Material /Dimensions Black Anodised Aluminium / Ø18.50mm X L35mm
- Weight 12g (not including Cable)
- Temperature Range -10°C to +50°C, Storage: -20°C to +40°C
- Operational Depth Maximum 50m (164 feet). O-Ring Sealed to IP-68
- Integral Waterproof Cable Standard 1m long x Ø3.6mm. fitted with RCA/Phono & 2.1mm DC Jack Sockets.
- Optional Cable Lengths available on request, upto 50m long.
