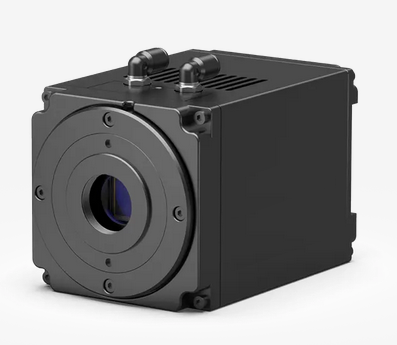

VCI-ACL3U401RM-BSI-A
BSI sCMOS camera designed to be lighter and to use less power for easier integration into small spaces
Features & Benefits:

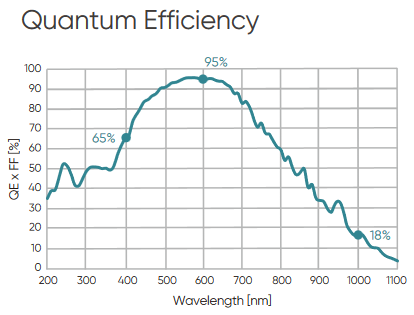

- 95% QE @ 600 nm
- 6.5 μm x 6.5 μm
- 2048 (H) x 2048 (V)
- 100 fps @ 4.2 MP
- CameraLink & USB3.0
Lighter and Requiring Less Power:
With a weight of only 995g and a low power consumption of only 45W, the VCI-ACL3U401RM-BSI-A is the lightest and most energy-efficient camera in its class, making it ideal for integrating and fitting into small spaces.
100fps@4MP:
The frame rate of the VCI-ACL3U401RM-BSI-A has been increased to 100fps, an upgrade from the VCI-ACL3U401RM-BSI, reaching the limit readout speed of 4MP resolution in CameraLink mode. You can also reduce the ROI to increase the frame rate further.
Rolling Shutter Control Mode:
The VCI-ACL3U401RM-BSI-A uses our newly developed technology, Rolling Shutter Control Mode, which allows users to add defined line time delays or slit heights to synchronize scanning modes in applications such as Light-Sheet Microscopy.
