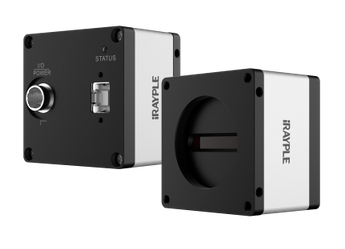

5000 Series Mono Line Scan Camera – GigE Interface
These iRAYPLE MONOCHROME line scan camera provides resolutions of 2K, 4K & 8K.
They support the GigE data interface enabling efficient transmission of high-frequency data and suitable for fast-paced production lines.
It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Features & Benefits:
- Support brightness enhancement, gamma correction, LUT and other ISP functions
- Support PRNU correction in target bright field
- Support various image formats of output data
- Support DC12~24V wide-range power supply
- Conform to CE, FCC, UL, RoHS certifications
Specification & Models:
| Product Model | Line Rate | Pixel Size | Sensor | Resolution | Product Status |
|---|---|---|---|---|---|
| L5022MG141E | 49 kHz | 14 μm × 14 μm | 2K | 2048 × 1 | Listed |
| L5027MG140E | 49 kHz | 14 μm × 14 μm | 2K | 2048 × 1 | Listed |
| L5042MG141E | 28 kHz | 7 μm × 7 μm | 4K | 4096 × 1 | Listed |
| L5027MG400E | 59 kHz | 7 μm × 7 μm | 2K | 2048 × 4 | Listed |
| L5047MG140E | 28 kHz | 7 μm × 7 μm | 4K | 4096 × 2 | Listed |
| L5082MG170E | 13 kHz | 7 μm × 7 μm | 8 K | 8192 × 1 | Listed |
| L5047MG100E | 29 kHz | 3.5 μm × 3.5 μm | 4K | 4096 × 2 | Listed |
