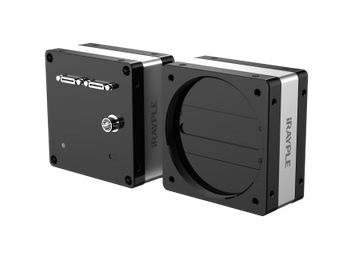

5000 Series Mono Line Scan Camera – Cameralink Interface
These iRAYPLE MONOCHROME line scan camera provides resolutions of 4K, 8K & 16K.
They support the Camera Link data interface enabling efficient transmission of high-frequency data and suitable for fast-paced production lines.
It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Features & Benefits:
- CameraLink supports Full, Medium, Base and Deca mode with maximum 6.8Gbps bandwidth
- Supports external trigger, free run mode and multiple modes
- Supports Gamma correction, LUT and other ISP functions
- Applies DC 24V power supply
- Compatible with Cameralink protocol and GenICam standard
- Comply with CE, FCC, UL, RoHS certifications
Specification & Models:
| Product Model | Line Rate | Pixel Size | Sensor | Resolution | Product Status |
|---|---|---|---|---|---|
| L5082MK170E | 80 kHz | 7 μm × 7 μm | 8 K | 8192 × 1 | Listed |
| L5047MK140E | 120 kHz | 7 μm × 7 μm | 4K | 4096 × 2 | Listed |
| L5162MK170E | 50 kHz | 3.5 μm × 3.5 μm | 16 K | 16384 × 1 | Listed |
| L5087MKA70E | 100 kHz | 5 μm × 5 μm | 8 K | 8192 × 4 | Listed |
| L5087MK470E | 100 kHz | 5 μm × 5 μm | 8 K | 8192 × 4 | Coming Soon |
| L5087CK670E | 34 kHz | 5 μm × 5 μm | 8 K | 8192 × 6 | Coming Soon |
| L5047MK141E | 180 kHz | 7 μm × 7 μm | 4K | 4096 × 2 | Listed |
