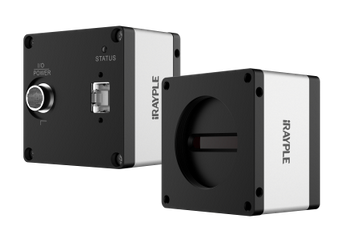

5000 Series Colour Line Scan Camera – GigE Interface
These iRAYPLE COLOUR line scan camera provides resolutions of 2K & 4K.
They support data interfaces including GigE & Camera Link enabling efficient transmission of high-frequency data and suitable for fast-paced production lines.
It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Features & Benefits:
- Support brightness enhancement, gamma correction, LUT and other ISP functions;
- Support PRNU correction in target bright field;
- Support various image formats of output data;
- Support DC12~24V wide-range power supply;
- Conform to CE, FCC, UL, RoHS certifications;
Specification & Models:
| Product Model | Line Rate | Pixel Size | Sensor | Resolution | Product Status |
|---|---|---|---|---|---|
| L5027CG140E | 49 kHz | 14 μm × 14 μm | 2K | 2048 × 2 | Listed |
| L5022CG141E | 49 kHz | 14 μm × 14 μm | 2K | 2048 × 2 | Listed |
| L5047CG140E | 28 kHz | 7 μm × 7 μm | 4K | 4096 × 2 | Listed |
| L5042CG141E | 28 kHz | 7 μm × 7 μm | 4K | 4096 × 2 | Listed |
| L5027CG300E | 44.7 kHz | 7 μm × 7 μm | 2 K | 2048 × 3 | Listed |
