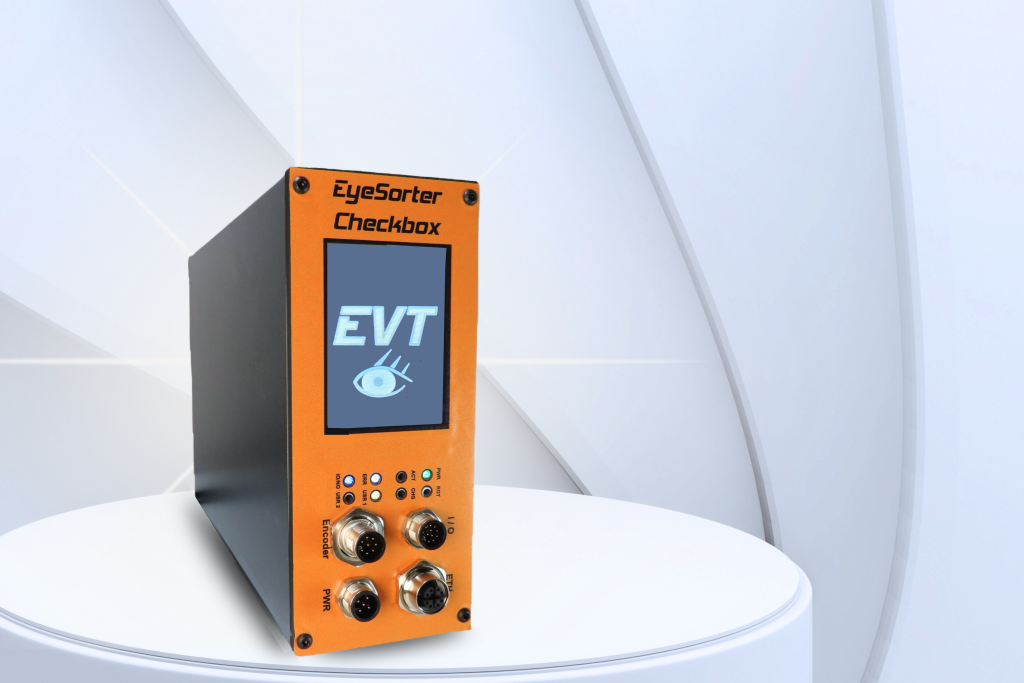

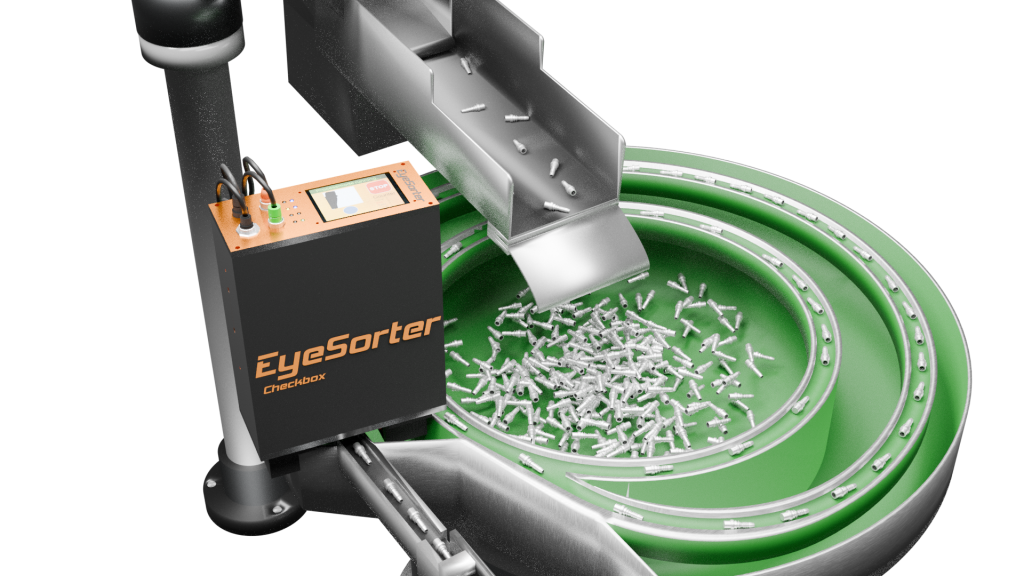

The EyeSorter Checkbox is an optical sorting unit, designed for part recognition and orientation. Ideally suited to bowl feeders, it can also be used in automatic assembly machines, with additional features for measurement, quality assurance and more, with no prior image processing knowledge or experience required.
The latest advancement to the EyeSorter Checkbox – thread inspection – allows users to instantly inspect the external thread of components at the touch of a button!
Key features:

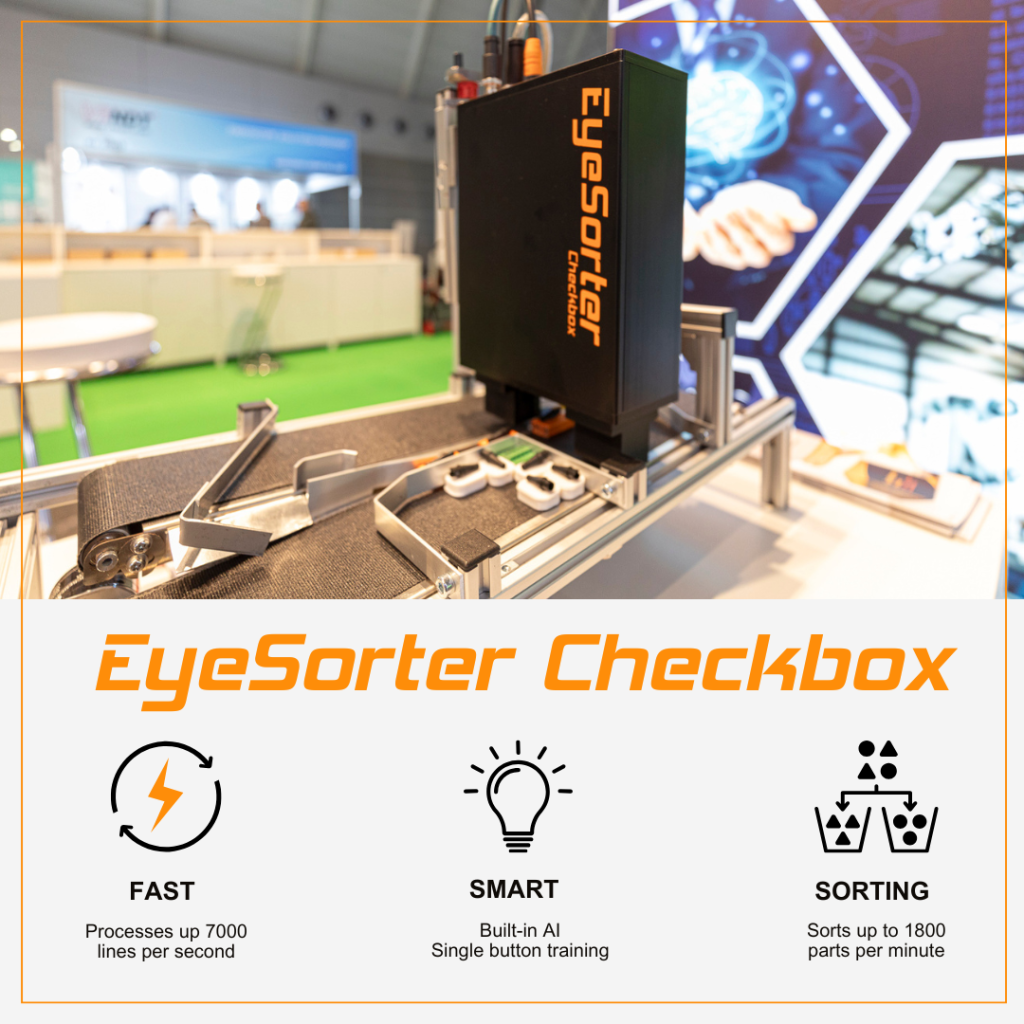

- Detects parts in milliseconds and processes up to 1800 parts per minute
- Equipped with an image capture speed of 7000 lines per second
- Identifies part orientation and signals rotation or ejection of misaligned parts
- Optional metrology features allow for customisable measurements
- Ensures correct part spacing and ejects parts that are too close
- Simple setup with one-time calibration
- New components can be trained with a single button press
- Web Interface Configuration – can be controlled anywhere and anytime from any web browser – even from your iPad!
- User-friendly touch interface without complex operating elements – quick teach-in and retrieval of stored components
- Automatic component recognition and rotational position check
- Supports metrology and 2D object recognition, allowing even complex tasks to be solved
- Supports OPC/UA, Profinet and Modbus IP for seamless machine integration
- Flying trigger for component tracking – enables precise sorting based on the position of the components
- Memory for up to 999 components – stored components can be recalled at any time, or expanded indefinitely through external storage
- Flexible use and offline training – component images can be downloaded for external software analysis
- Password-protected access – security options prevent unauthorised changes to the settings
Pair the EyeSorter Checkbox with EyeVision software for customised and advanced optical inspection options!
